Designed for heavier antennas and mesh network use, these masts are light and small enough to be carried by dismounted forces as well as minimizing the volume required for vehicles carriage. As with all Rolatube products, the systems are designed to minimize the size and weight of package carried and preserves the ultra-lightweight advantage of composite masts whilst avoiding their fragility.
Quick and simple to deploy, it may be used either fully extended or partially rolled out. Unlike metal or carbon composite masts, the thermal signature of BRC masts is minimal.
The masts are based on patented Rolatube technology. Formed from custom manufactured composite materials, the mast rolls up in the manner of a carpenters tape measure but, uniquely, is stable in either the coiled or extended form.
Rolatube masts are:
- Reliable No moving parts or joints to fail
- Lightweight Composite structure offers exceptional strength to weight.
- Rugged Thermoplastic composite is highly resistant to impact. Even after significant damage it will retain most of its structural strength
- Proven Over 800 masts in operational use by UK and NATO forces
- Compact Whole system fits to bag size of 250mm x 180mm
Mast Length Options:
- 75mm x 3m Double Mast System
- 75mm x 4m Double Mast System
- 75mm x 5m Double Mast System
- 75mm x 7m Double Mast System

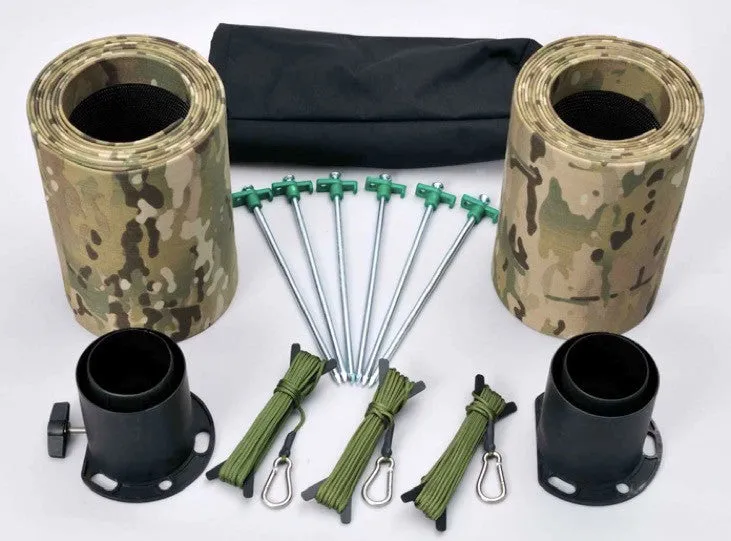

System 75 Double Mast System Contents:
Consists of all parts required for field deployment:
- 2 x 75mm diameter masts with 500 denier Cordura covering of Black, Green or more specialised cloths on request
- 1 x top cap includes a 30mm socket for mounting ancillary equipment
- Guys
- 6 x pegs. Either pin or V shaped pegs can be supplied
- 1 x carry bag
System 75 Double Mast System Options:

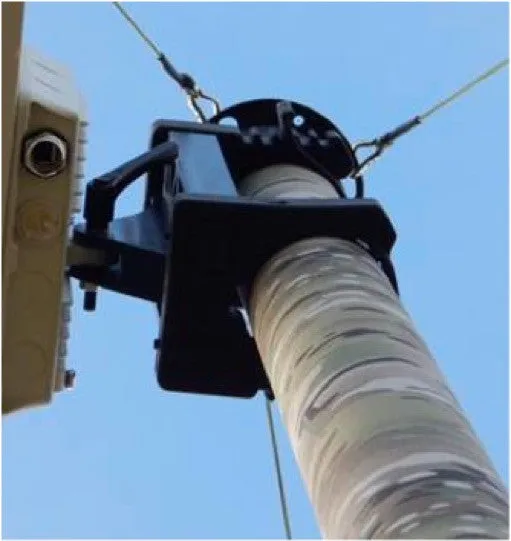

- Optional Antenna Mount

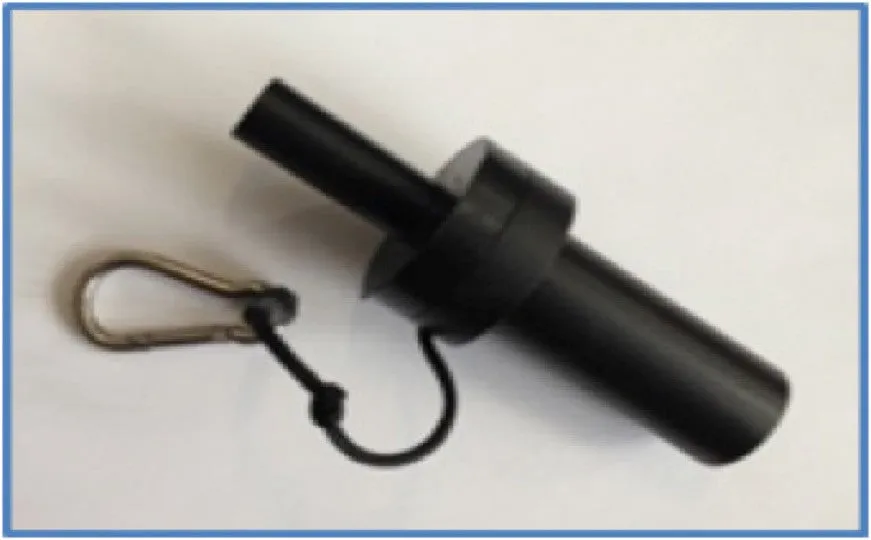

- Optional Adaptor

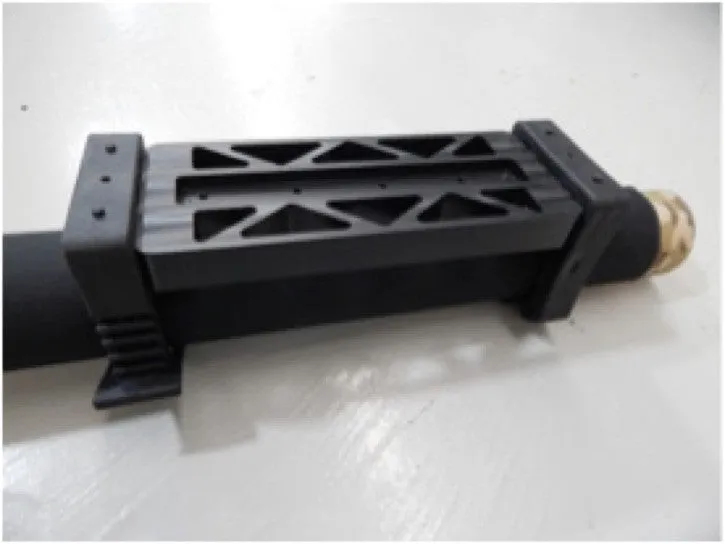

- Optional Side Mount
Options
Spearpoint are happy to quote for any specific customer requirements, including variations in cover materials, pegs and spigot hole sizes to fit any antenna. Other mast lengths and head weight capacity available on request.
